ExperimentalClassical computer vision GUI / 2024-2025
Problem
Coin images vary in lighting, contrast, noise, background, and scale, so the tool needs preprocessing and validation before counting blobs.
Solution
Load an image in Tkinter, compute image statistics, apply needed preprocessing, segment with Otsu thresholding, validate circular regions, and compare counts with CSV labels.
Key Features
Tkinter GUI for uploading a coin image and viewing original/processed results side by side
Image-statistics based preprocessing for contrast, brightness, noise, dynamic range, saturation, and intensity clipping

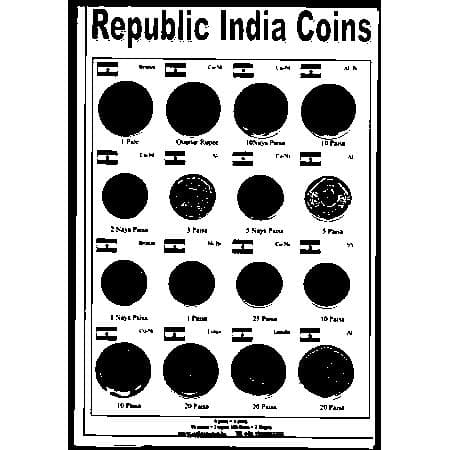

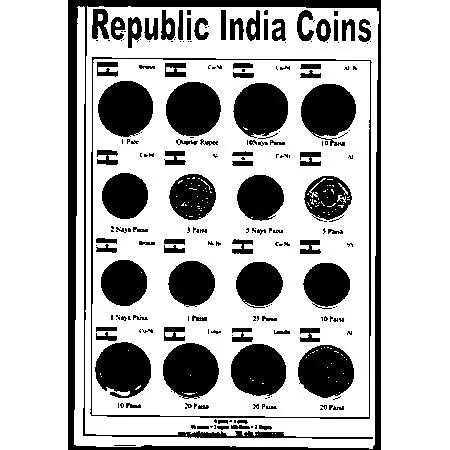

Otsu threshold segmentation implemented in a reusable segmentation module
Conditional filtering module with mean, Gaussian, median, Laplacian, and Sobel filters
Connected-component scan that validates candidate coins by area, perimeter, circularity, and region intensity
Relative radius grouping into small, medium, and large coin buckets
CSV-backed comparison between detected and actual coin counts with an accuracy percentage

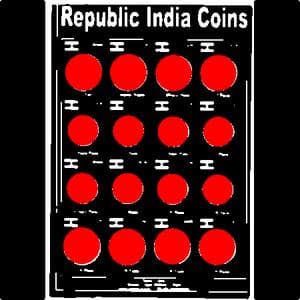

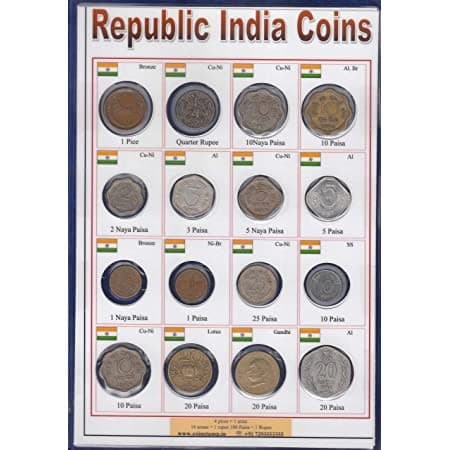

Repository assets for input, segmented output, and final detection overlay
Architecture Map
Mermaid
flowchart LR User["Tkinter GUI upload"] --> Loader["Pillow image load"] Loader --> Stats["Image statistics: brightness, contrast, saturation, range"] Stats --> Preprocess["Adaptive preprocessing: contrast, brightness, denoise, dynamic range"] Preprocess --> Segment["Otsu threshold segmentation"] Segment --> Filters["Conditional filters: mean, Gaussian, median, Laplacian, Sobel"] Filters --> Binary["Binary coin mask"] Binary --> Components["Connected-component scan"] Components --> Circles["Circle validation: area, perimeter, circularity, intensity"] Circles --> Sizes["Radius groups: small, medium, large"] Circles --> Accuracy["CSV lookup: detected count vs actual count"] Sizes --> UI["Original and processed panels with summary"] Accuracy --> UI
